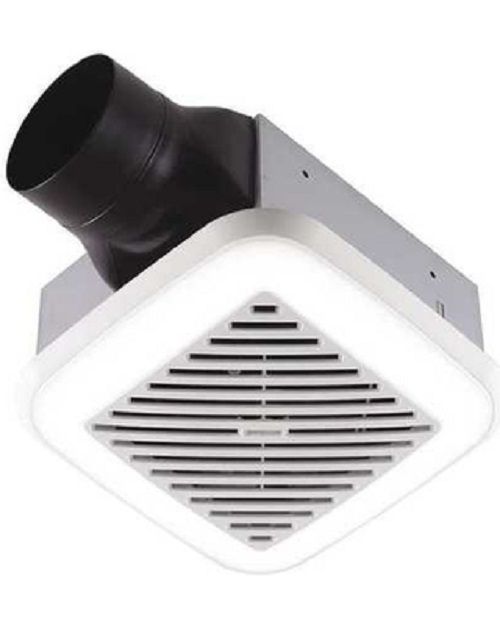

InVent™ Series Single-Speed Fan With Soft Surround LED Lighting Technology 110 CFM 1.5 Sones, ENERGY STAR Qualified

DESCRIPTION

• This patent-pending series marks a revolution of our mid-range ventilation fans. It gives professionals the flexibility to handle new construction or room-side retrofit installations from one hard-working product line with a full range of operating points. Innovations include foldable mounting ears and new damper and housing technology that improve building airtightness like never before. And all with new grille designs that are at home in any decor.

  • 110 CFM reduces humidity to quickly eliminate fogged mirrors and manage moisture in bathrooms up to 105 square feet, so your vision will always be clear and your surroundings will always be comfortable
  • Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation, so you can move on to something else
  • With our TrueSeal™ Damper Technology, InVent fans reduce air leakage by up to Fifty Percent* compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
  • EzDuct™ Connector can be installed room-side with no attic access required, fan housing connection have never been easier
  • ENERGY STAR® Qualified
  • UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
  • Includes 9 watt, 3000K, integrated LED module for energy efficiency
  • With our TrueSeal™ Damper Technology, InVent fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests.*

  FEATURES

  Bathrooms up to (X) Square Feet	105
  Ceiling Installation	Yes
  CFM @ 0.10"	110
  CFM @ 0.25"	92
  Color	White
  CSA	No
  cUL Listed	Yes
  Duct Direction	Horizontal
  Duct Size	4"
  ENERGY STAR® qualified	Yes
  Globe Glass Color	N/A
  Grille Finish	White Polymeric
  Grille Length	12-5/8"
  Grille Width	12-5/8"
  Heater wattage	N/A
  Housing Dimension LxWxH	9-1/4" x 10" x 5-3/4"
  Housing Height	5-3/4"
  Housing Length	9-1/4"
  Housing Width	10"
  Humidity Sensing	No
  HVI Certified	Yes
  Light Bulb Quantity	Integrated LED Module
  Light Bulb Wattage	9
  Light Bulbs Included	Yes
  Lighting Type	LED
  Minimum construction space required	2x6
  Motion Sensor	No
  Motor engineered for continuous operation	Yes
  Nightlight	No
  Product Weight	10.0 lbs
  Project Pack	No
  Radiation Damper Available	No
  Rated Amps	0.5
  Rated Watts	23.4
  Room-Side Installation	Yes
  Sones	1.5
  UL Listed for use over bathtubs or showers when connected to a GFCI circuit	Yes
  Wall Installation	No
  Warranty	3 Years
