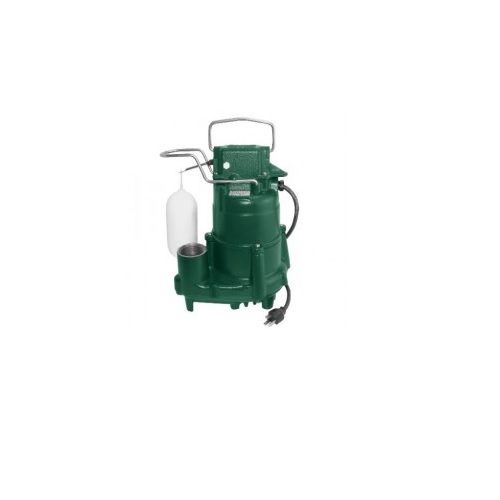

Zoeller 98-0001 Flow-Mate Automatic Cast Iron Effluent Sump Pump 115 V 1/2 Horsepower
DESCRIPTION
Zoeller Flow-Mate Automatic Cast Iron Effluent Sump Pump 115 V 1/2 Horsepower
SKU: 98-0001
Effluent or dewatering submersible pump for septic tank, low pressure pipe (LPP) and enhanced flow STEP systems.
Features:
- Corrosion resistant powder coated epoxy finish
- Durable cast iron construction
- Cast iron switch case, motor, pump housing and base
- No sheet metal parts to rust or corrode
- All castings are cast iron class 25-30 25000# tensile strength
- Stainless steel screws, guard, handle, arm and seal assembly
- Float operated submersible (NEMA 6) 2 pole mechanical switch
- Permanent split capacitor motor, oil filled and hermetically sealed, automatic reset thermal overload protection
- Bearings - upper & lower oil fed cast iron
- Carbon and ceramic shaft seal
- Entire unit pressure tested after assembly
- Watertight neoprene square ring between motor and pump housing
- Maximum temperature for effluent or dewatering 130?F (54?C)
- Impeller Type: Non-clogging, engineered plastic vortex impeller
- Passes 1/2" spherical solids
- No screens to clog
- 1-1/2" NPT discharge
- On point: 9-1/2", Off point: 3"
- Reserve Powered Design. For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.
FEATURES
Passes 1/2-Inch spherical solids; On point: 9-1/2-Inch, off point: 3-Inch; Pumps 72-Gallons per minute with 5-Foot head; Shut-off head: 23-Feet; Includes a 15-Foot 3-wire neoprene cord
